Diameter (mm) 1 200
Volume (l) 570
Draught (mm) 290
Freeboard (mm) 435
Overall height (mm) 1 775
Mast (mm) 1 050
TECHNICAL SPECIFICATIONS
Weight with ballast (kg) 127
Polyurethane foam (kg/m³) 40
Submergence (kg/cm) 11
Visible area (m²) 1.1
Focal plane (mm) 2 058

FLC 1200

Diameter (mm) 1 500
Volume (l) 987
Draught (mm) 355
Freeboard (mm) 520
Overall height (mm) 1 925
Mast (mm) 1 050
TECHNICAL SPECIFICATIONS
Weight with ballast (kg) 208
Polyurethane foam (kg/m³) 40
Submergence (kg/cm) 13
Visible area (m²) 1.7
Focal plane (mm) 2 191

FLC 1500

Diameter (mm) 1 800
Volume (l) 1 544
Draught (mm) 560
Freeboard (mm) 521
Overall height (mm) 2 710
Mast (mm) 1 554
TECHNICAL SPECIFICATIONS
Weight with ballast (kg) 432
Polyurethane foam (kg/m³) 40
Submergence (kg/cm) 21
Visible area (m²) 2.3 to 3.3
Focal plane (mm) 2 940

FLC 1800

Diameter (mm) 2 200
Volume (l) 3 335
Draught (mm) 560
Freeboard (mm) 790
Overall height (mm) 3 480
Mast (mm) 2 054
TECHNICAL SPECIFICATIONS
Weight with ballast (kg) 725
Polyurethane foam (kg/m³) 40
Submergence (kg/cm) 38
Visible area (m²) 3.3 to 4.3
Focal plane (mm) 3 700

FLC 2200

Diameter (mm) 3000
Volume (l) 8170
Draught (mm) 1720
Freeboard (mm) 1092
Overall height (mm) 6940
Mast (mm) 2834
TECHNICAL SPECIFICATIONS
Weight with ballast (kg) 2077
Independent float 4
Submergence (kg/cm) 60
Visible area (m²) 6.6
Focal plane (mm) 4370

FLC 3000

Diameter (mm) 1200
Net buoyancy (l) 543
Weight (kg) 92
Height (mm) 779
Safe Working Load (T) 10
Recommended Chain ND 25 4D SL2

FLCMOOR 1200

Diameter (mm) 1500
Net buoyancy (l) 950
Weight (kg) 127
Height (mm) 929
Safe Working Load (T) 10
Recommended Chain ND 25 4D SL2

FLCMOOR 1500

Diameter (mm) 1800
Net buoyancy (l) 1488
Weight (kg) 210
Height (mm) 1150
Safe Working Load (T) 20
Recommended Chain ND 35 4D SL2

FLCMOOR 1800

Diameter (mm) 2200
Net buoyancy (l)  3243
Weight (kg) 345
Height (mm) 1420
Safe Working Load (T) 20
Recommended Chain ND 35 4D SL2

FLCMOOR 2200

Diameter Ø1250mm
Nominal Focal Height 2000mm
Nominal Height 3100mm
Nominal Draft 470mm
Nominal Weight 280kg
Top Marks In accordance with IALA Maritime Buoyage System
Colours In accordance with IALA Maritime Buoyage System
Life Expectancy Up to 20 years
Lantern Options Self-Contained Lanterns, lantern only options on request

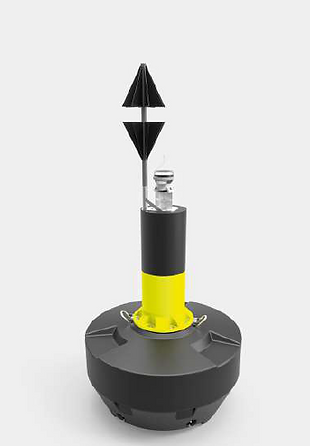

G1250mm Gannet Buoy

Type of products:

1. Rectangular Solutions

2. Round Solutions

3. Rectangular Frames

4. Round Frames/Seals

5. Sealing Components

6. Accessories

​

Roxtec ensures a perfect fit, regardless of the dimension of the cable or pipe.

Roxtec Sealing Solution (Click to download full brochure)

Type of products:

1. Pneumatic Fender

2. Foam Filled Fenders

3. Fied Fenders

4. Fender Davits

5. Accessories

Fenders (Click to download full brochure)

The ZR-SF Radial Telescopic Stacker offers a unique material handling solution for the Quarrying, Mining, and rail Transportation industries and can also be utilized in Ports and inland Terminals for Ship/barge loading and unloading. The innovative design allows for up to +28% larger stockpile capacity when compared to conventional fixed length conveyor systems.

ZR-SF RADIAL TELESCOPIC STACKER (Click to download full brochure)

Golden Heart Marine offers high-quality mooring ropes designed for durability, superior strength, and easy handling. Engineered for safety and resilience in harsh marine conditions, our versatile selection ensures a secure and worry-free docking experience. Choose Golden Heart Marine for premium mooring ropes that elevate your boating experience.

Mooring Ropes (Click to download full brochure)

HID Dredging company has over 30 years of dredger manufacturer workmanship, is a leading professional & innovative dredger manufacturer and supplier with a presence in 80+ countries and regions.

HID Dredgers (Click to download full brochure)
